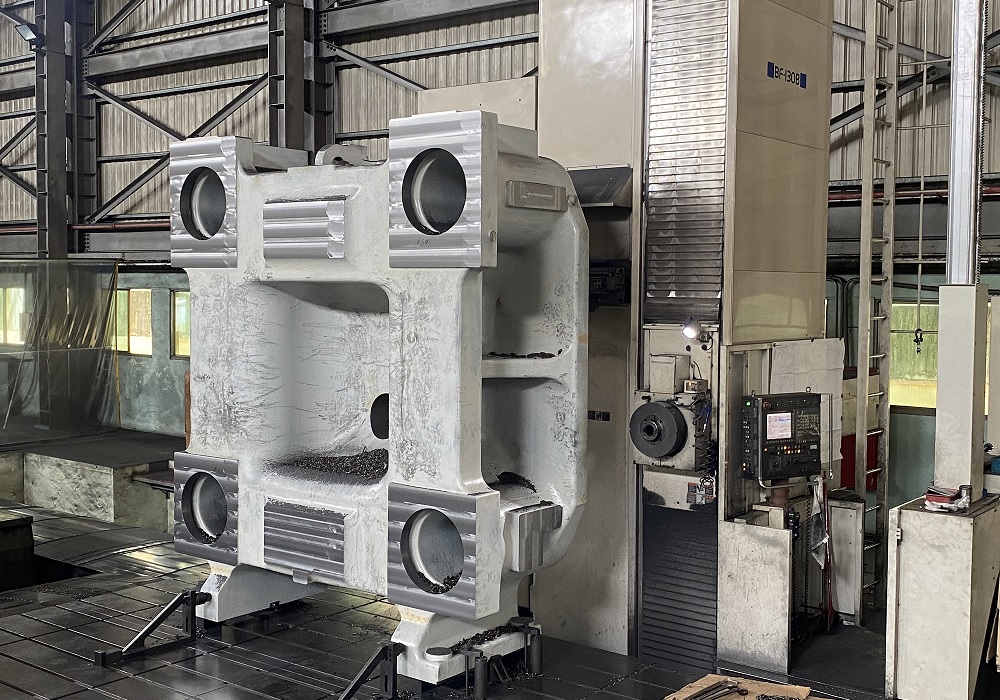

（１）Stationary Platen for Plastic Injection Molding Machine

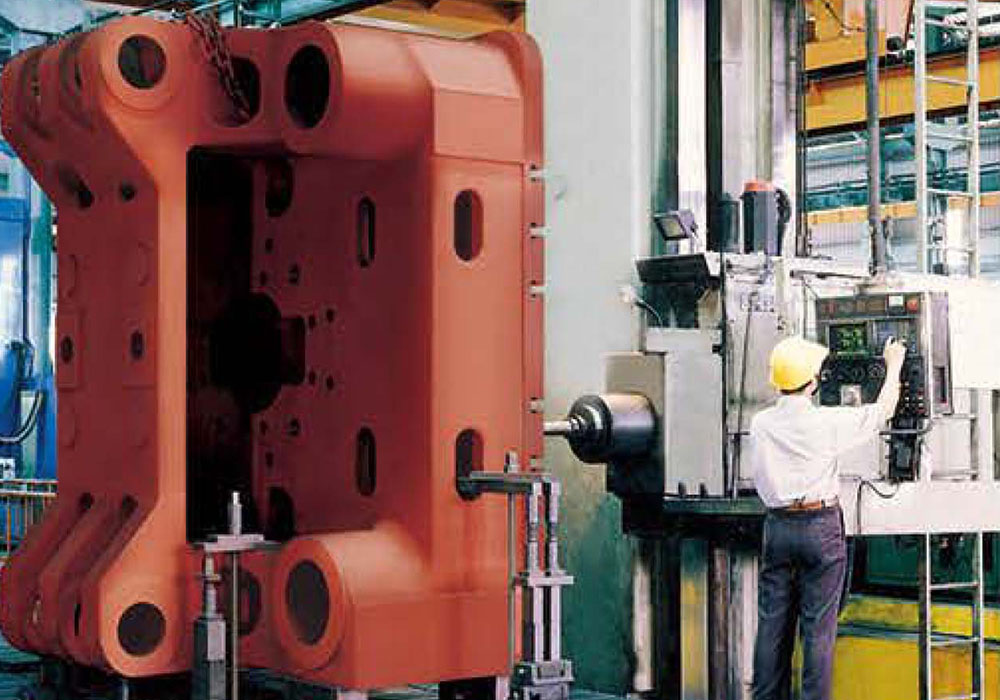

（２）Moving Platen for Plastic Injection Molding Machine
（３）Stationary Platen for Die Casting Machine
| Meehanite | GM400 | GA350 | GB300 | GC275 | GD250 | GE200 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Taiwan | CNS G3038 | FC350 | FC300 | FC250 | FC200 | ||||||||
| Japan | JIS G5501 | FC350 | FC300 | FC250 | FC200 | ||||||||
| USA | ASTM-A48 | Class60 | Class55/50 | Class45 | Class40 | Class35 | Class25 | ||||||
| Germany | DIN1691 | GG40 | GG35 | GG30 | GG25 | GG20 | |||||||
| Tensile Strength(more)kgf/mm2 | 40 | 35 | 30 | 28 | 25 | 20 | |||||||
| Brinell Hardness HBS or HBW | 210/280 | 200/240 | 190/230 | 185/225 | 180/220 | 170/210 | |||||||
| Meehanite Specifications | Feature | Application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GM-GA | The most versatile of the general engineering types, have a dense, fine grain structure& exceptional physical properties, including good impact strength & shock resistance.Machining to a very fine finish is recommended for heavy castings requiring pressure tightness. Both types respond to heat treatment. | Used extensively for heavy service gears, sheaves, cable drums & crane wheels, kiln tires& rollers, stamping, drawing, pressing, lathe spindles, etc. | |||||||||||
| GB-GC | A versatile iron for small & medium size castings. Relatively high density & solidity make it ideal for small types of pressure castings. | ||||||||||||
| GD-GE | A superior alternative to ordinary cast iron in all applications. Manufactured under the same strict control as all Meehanite types, ensuring structural uniformity &soundness. Improved strength & density for consistent, reliable performance. | Suitable for any size casting, from the lightest repetitive to large,heavy individual castings. | |||||||||||
| Meehanite | SFF350 | SFF400 | SF400 | SF420 | SFP500 | SPF600 | SP700 | SH800 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Taiwan | CNS B2118 | FCD370 | FCD400 | FCD400 | FCD450 | FCD500 | FCD600 | FCD700 | FCD800 | ||
| Japan | JIS G5502 | FCD370 | FCD400 | FCD400 | FCD450 | FCD500 | FCD600 | FCD700 | FCD800 | ||
| USA | ASTM-A536 | 60-40-18 | 65-45-12 | 80-55-06 | 120-70-2 | 120-90-2 | |||||
| Germany | DIN1693 | GGG35.3 | GGG40.3 | GGG40 | GGG50 | GGG60 | GGG70 | GGG80 | |||
| Tensile Strength(more) | 35 | 40 | 40 | 40 | 50 | 60 | 70 | 80 | |||
| Elongation % | 20 | 20 | 15 | 15 | 10 | 4 | 2 | 2 | |||
| Brinell Hardness HBS or HBW | 130/160 | 130/170 | 140/190 | 140/190 | 170/230 | 200/260 | 220/280 | 260/320 | |||
| Meehanite Specifications | Feature | Application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SH-SP | Ideal for relatively heavy castings where high strength is desired. | Recommended for use where severe stresses, shock or high internal pressures are encountered, e.g. heavy duty gears, sprockets,car journal boxes, etc. | |||||||||||
| SPF-SFP | In as-cast condition, has more than twice the strength of conventional gray cast iron & is exceptionally tough. Both have combined ferritic and pearlitic structure, readily machinable. Responds easily to surface hardening by nitriding or flame / electric induction heat treatment. | ||||||||||||
| SF | Exhibits high ductility, exceptional shock resistance & provides maximum toughness & machinability. | For components subjected to thermal & mechanical shock, pressure castings, valves,cylinders, automotive &machine tool parts,marine & where soft-steel castings. | |||||||||||
| SFF | ferritic structure provides maximum toughness & mechanical shock resistance. Recommended for use in subzero temperatures where shock is encountered. | Hubs, valves, clutches & pumps for use in low temp settings, e.g. wind turbines. | |||||||||||
