Quality Control

Quality

Taiwan Cheng Sheng is fully equipped with precision testing instruments to analyze the physical and chemical properties of our castings as part of quality control procedures. We periodically calibrate instruments, and all our casting products are subject to documented control and follow up to ensure consistent quality. We also provide highly reliable testing rods that extract product samples to provide customers for their own inspection and analysis.

Inspection Facilities Specifications Quantity
Universal Tester 20 Tons 1
Vacuum Emission Spectrometer 1 Meter 1
Vacuum Emission Spectrometer CCD Optical System 1
C.E. Meter CE メーター - 2
Hardness Tester HR.HS.HB. 3
Metallurgical Microscope 1500 X 1
Impact Tester - 1
Tensile Tester 2.5 Tons 1
Sand Tester - 1
Sand Mold Stress Tester 1 Ton 1
Sand Mold Tensile Strength Tester 1 Ton 1
Sampling Test - 1
Immersion Thermometer - 4
Wedge Inspection Equipment - 1
MT Tester - 1
UT Tester - 1
Portable Metallurgical Tester - 1
Portable Hardness Tester - 1

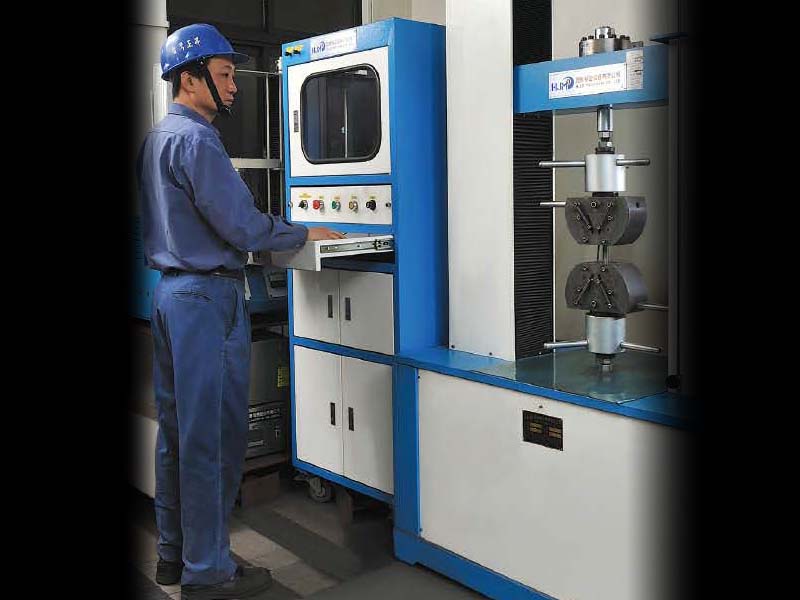

Universal Tester

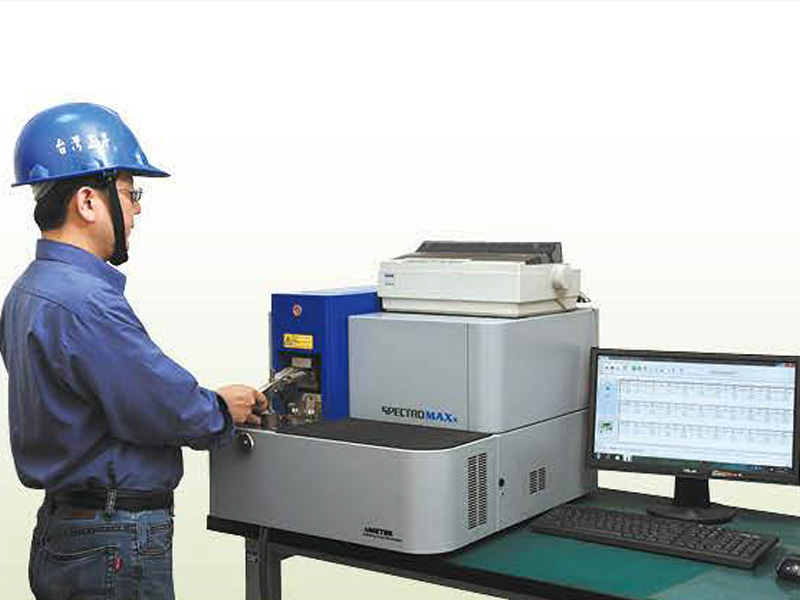

Vacuum Emission Spectrometer

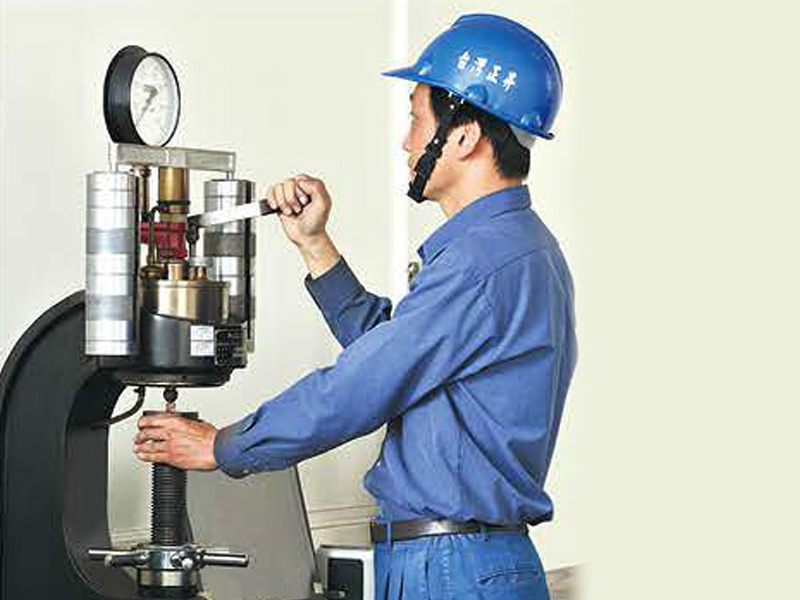

Hardness Tester
Metallurgical Microscope

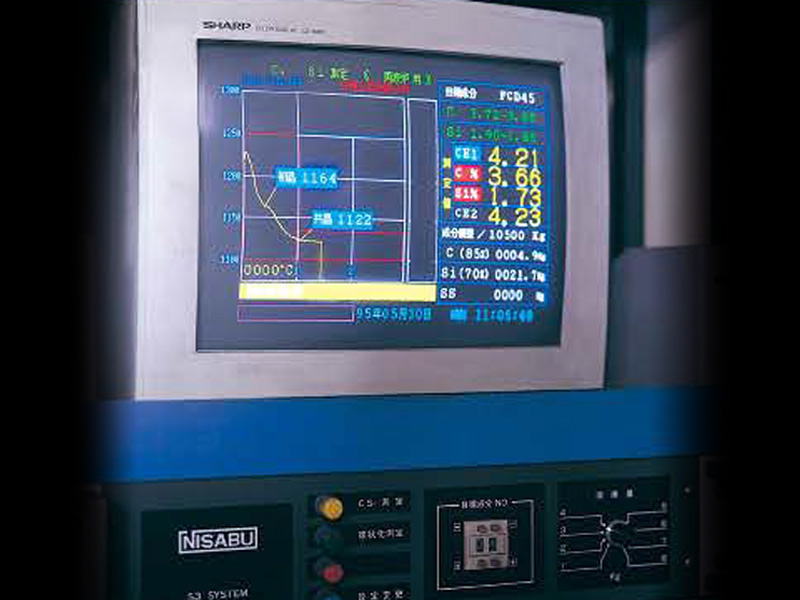

C.E. Meter
Impact Tester

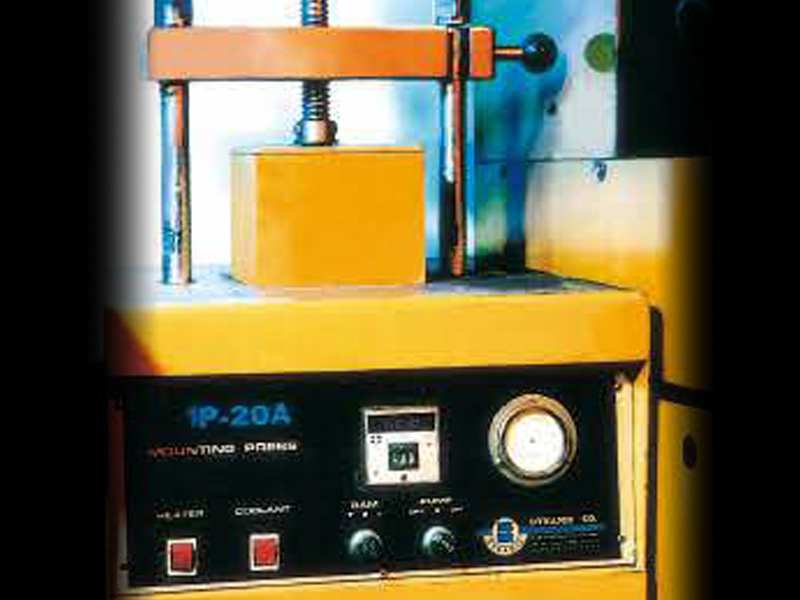

鑲埋成型機
金相切割儀

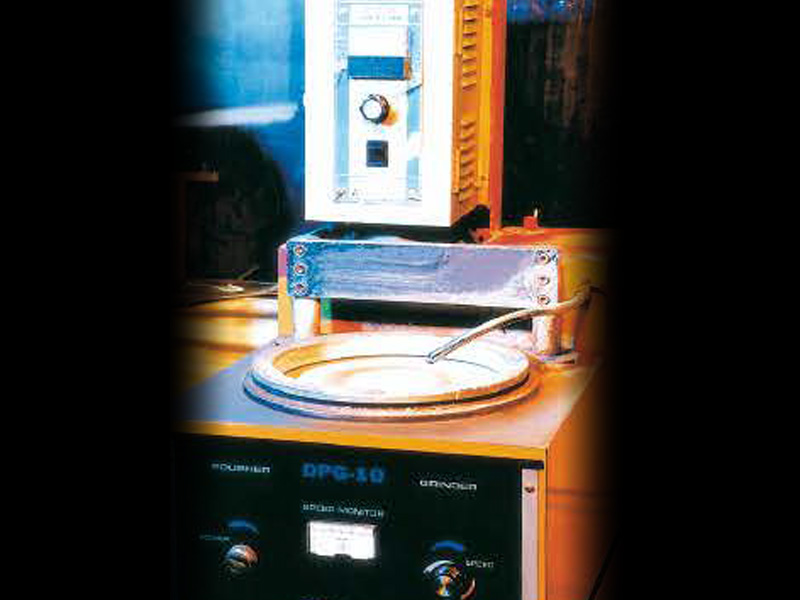

金相研磨機

DUCTILE CAST IRON INSPECTION PROCESS

Raw Materials Checking
Melfing
Composition Test Before Spheroidizing
Temperature Checking Before Spheroidizing
Spheroidizing & Inoculation Control
Temperature Checking After Spheroidizing
Melt Sampling Delivery
Composition Test After Spheroidizing
Castings Sampling
Physical Test
Metallurgical Microscope Analysis
Product Inspection
Delivery

GREY CAST IRON INSPECTION PROCESS

Raw Materials Checking
Melting
Composition Test Before Inoculation
Temperature Checking Before Tapping
Inoculation
Temperature Checking Before Pouring
Melt Sampling
Composition Test After Inoculation
Castings Sampling
Physical Test
Metallurgical Microscope Analysis
Product Inspection
Delivery

Certifactions

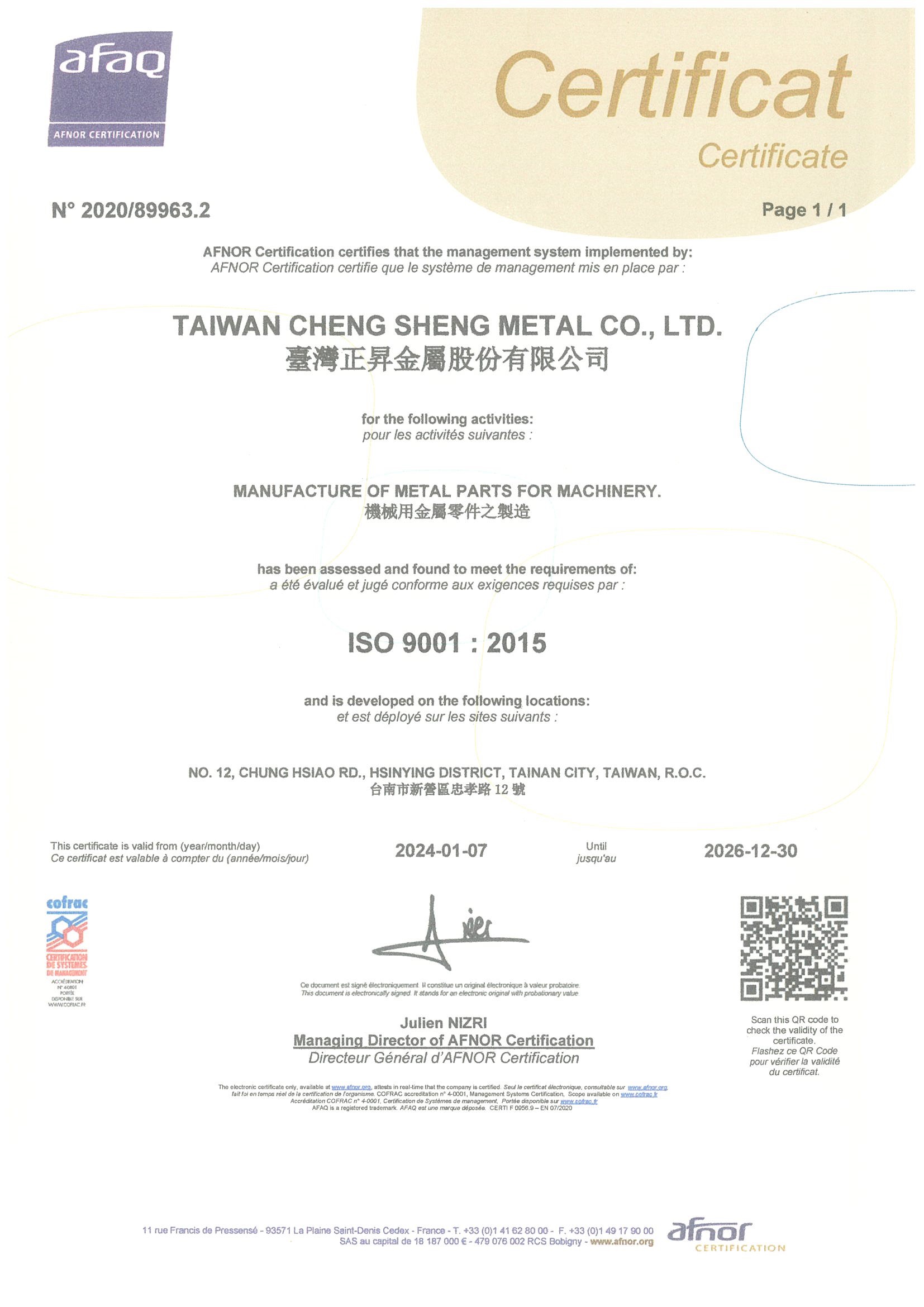

ISO9001Certified

ISO9001

Growth at Taiwan Cheng Sheng is based on quality excellence. Our manufacturing system is dictated by strict adherence to ISO-9001 International Quality Certification guidelines practiced in our daily production routines.

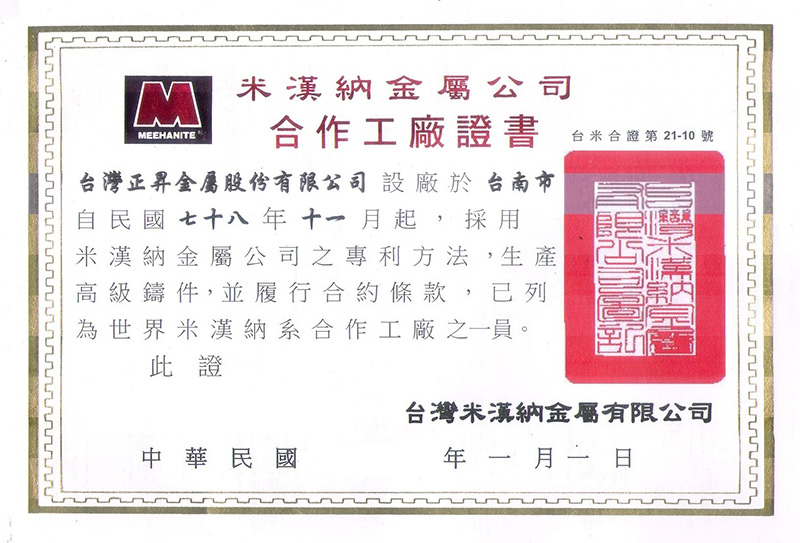

Meethanite Metal Company

Meehanite

Meehanite

Since Taiwan Cheng Sheng was established we have remained devoted to improving the quality of cast irons. Therefore we have adopted technology from Meehanite USA. Taiwan Cheng Sheng produces high quality Meehanite Cast Iron, Grey Cast Iron and Ductile Cast Iron. By combining some of the world’s top engineers with superior manufacturing and the best testing equipment available, Taiwan Cheng Sheng promises to deliver ever higher quality products that fully comply with Meehanite standards.

Meehanite GM400 GA350 GB300 GC275 GD250 GE200
Taiwan CNS G3038 FC350 FC300 FC250 FC200
Japan JIS G5501 FC350 FC300 FC250 FC200
USA ASTM-A48 Class60 Class55/50 Class45 Class40 Class35 Class25
Germany DIN1691 GG40 GG35 GG30 GG25 GG20
Tensile Strength(more)kgf/mm2 40 35 30 28 25 20
Brinell Hardness HBS or HBW 210/280 200/240 190/230 185/225 180/220 170/210
Meehanite Specifications Feature Application
GM-GA The most versatile of the general engineering types, have a dense, fine grain structure& exceptional physical properties, including good impact strength & shock resistance.Machining to a very fine finish is recommended for heavy castings requiring pressure tightness. Both types respond to heat treatment. Used extensively for heavy service gears, sheaves, cable drums & crane wheels, kiln tires& rollers, stamping, drawing, pressing, lathe spindles, etc.
GB-GC A versatile iron for small & medium size castings. Relatively high density & solidity make it ideal for small types of pressure castings.
GD-GE A superior alternative to ordinary cast iron in all applications. Manufactured under the same strict control as all Meehanite types, ensuring structural uniformity &soundness. Improved strength & density for consistent, reliable performance. Suitable for any size casting, from the lightest repetitive to large,heavy individual castings.
Meehanite SFF350 SFF400 SF400 SF420 SFP500 SPF600 SP700 SH800
Taiwan CNS B2118 FCD370 FCD400 FCD400 FCD450 FCD500 FCD600 FCD700 FCD800
Japan JIS G5502 FCD370 FCD400 FCD400 FCD450 FCD500 FCD600 FCD700 FCD800
USA ASTM-A536 60-40-18 65-45-12 80-55-06 120-70-2 120-90-2
Germany DIN1693 GGG35.3 GGG40.3 GGG40 GGG50 GGG60 GGG70 GGG80
Tensile Strength(more) 35 40 40 40 50 60 70 80
Elongation % 20 20 15 15 10 4 2 2
Brinell Hardness HBS or HBW 130/160 130/170 140/190 140/190 170/230 200/260 220/280 260/320
Meehanite Specifications Feature Application
SH-SP Ideal for relatively heavy castings where high strength is desired. Recommended for use where severe stresses, shock or high internal pressures are encountered, e.g. heavy duty gears, sprockets,car journal boxes, etc.
SPF-SFP In as-cast condition, has more than twice the strength of conventional gray cast iron & is exceptionally tough. Both have combined ferritic and pearlitic structure, readily machinable. Responds easily to surface hardening by nitriding or flame / electric induction heat treatment.
SF Exhibits high ductility, exceptional shock resistance & provides maximum toughness & machinability. For components subjected to thermal & mechanical shock, pressure castings, valves,cylinders, automotive &machine tool parts,marine & where soft-steel castings.
SFF ferritic structure provides maximum toughness & mechanical shock resistance. Recommended for use in subzero temperatures where shock is encountered. Hubs, valves, clutches & pumps for use in low temp settings, e.g. wind turbines.
