Production Facilities

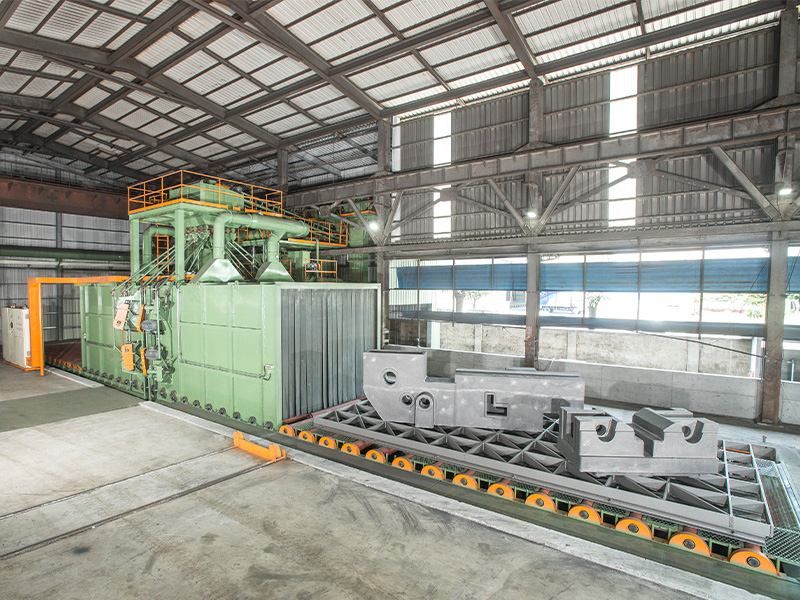

Tunnel Type Shot Blasting Machine
Tunnel Type Shot Blasting Machine TCS TAIWAN CHENG SHENG METAL CO., LTD.

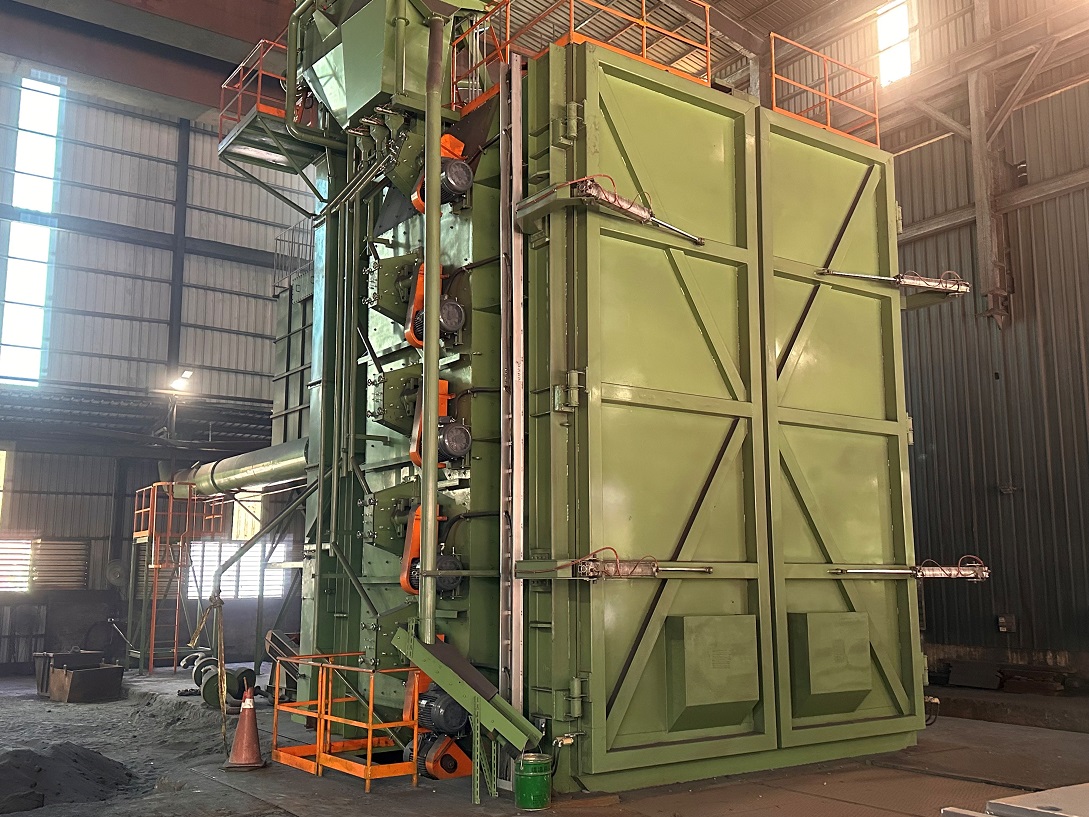

Crane Shot Blasting Machine
Crane Shot Blasting Machine TAIWAN CHENG SHENG METAL CO., LTD.
Production Facilities Specifications Quantity
MF Induction Furnace 5 Tons 1
MF Induction Furnace 10 Tons 2
MF Induction Furnace 20 Tons 2
Furan No-Bake Molding System 20 Tons/HR 2
Furan No-Bake Molding System 35 Tons/HR 7
Sand Conveying - 9
Sand Recycling System 15 Tons/HR 3
Crane Shot Blasting Machine Loading capacity: 40 Tons 1
Tunnel Type Shot Blasting Machine Loading capacity: 100 Tons 1
Heat Treatment Furnace 10 * 3 * 2.5 (M) 1
Crane 3-80 Tons 40
Dust Collecting System 2-75(HP) 23
Sand Mold Dryer 54KW 2

Processing Equipment

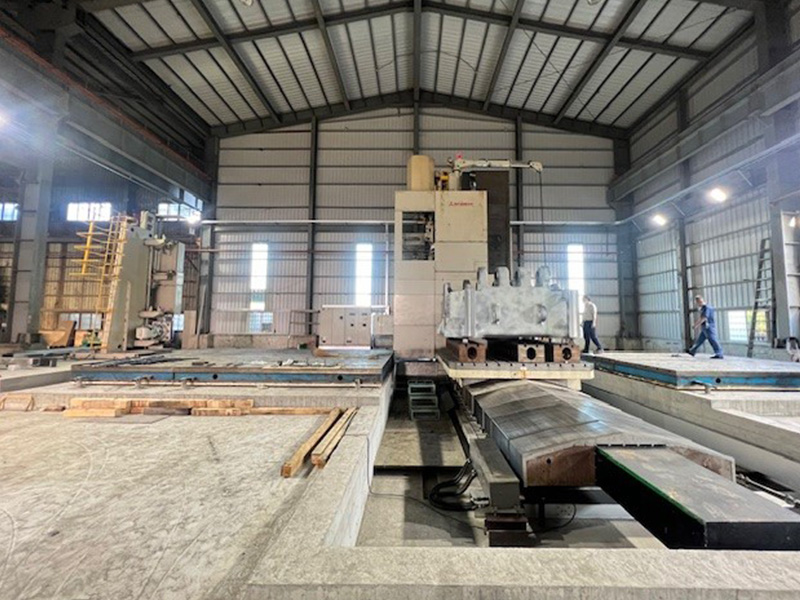

Horizon Boring Machine
Processing Equipment
Processing Stroke Spec
X-axis---Longitudinal 16,000 mm
Y-axis---Spindle vertical 4,000 mm
Z-axis---Quill axial 1,100 mm
W-axis---Spindle travel 900 mm
Spindle diameter φ180 mm
Spindle speed Max. 2,000 rpm
Rotary table 3,000 x 3,500 mm (50T) / V-axis 3,000 mm
Manufacturing Process

Melting

Charging
Power Supply
Melt
Content Test
Certification
Tapping
Inoculation, Spheroidization

Molding

Casting Plan Design
Mold Pattern Checking
Furan Sand Molding
Stripping, Coating
Baking
Assembly
Pouring

After-Treatment

Slow-Cooling Off
Shaking-Out
Sand Stripping
Cutting, Grinding
Heat Treatment
Blast Cleaning
Product Inspection
Delivery
